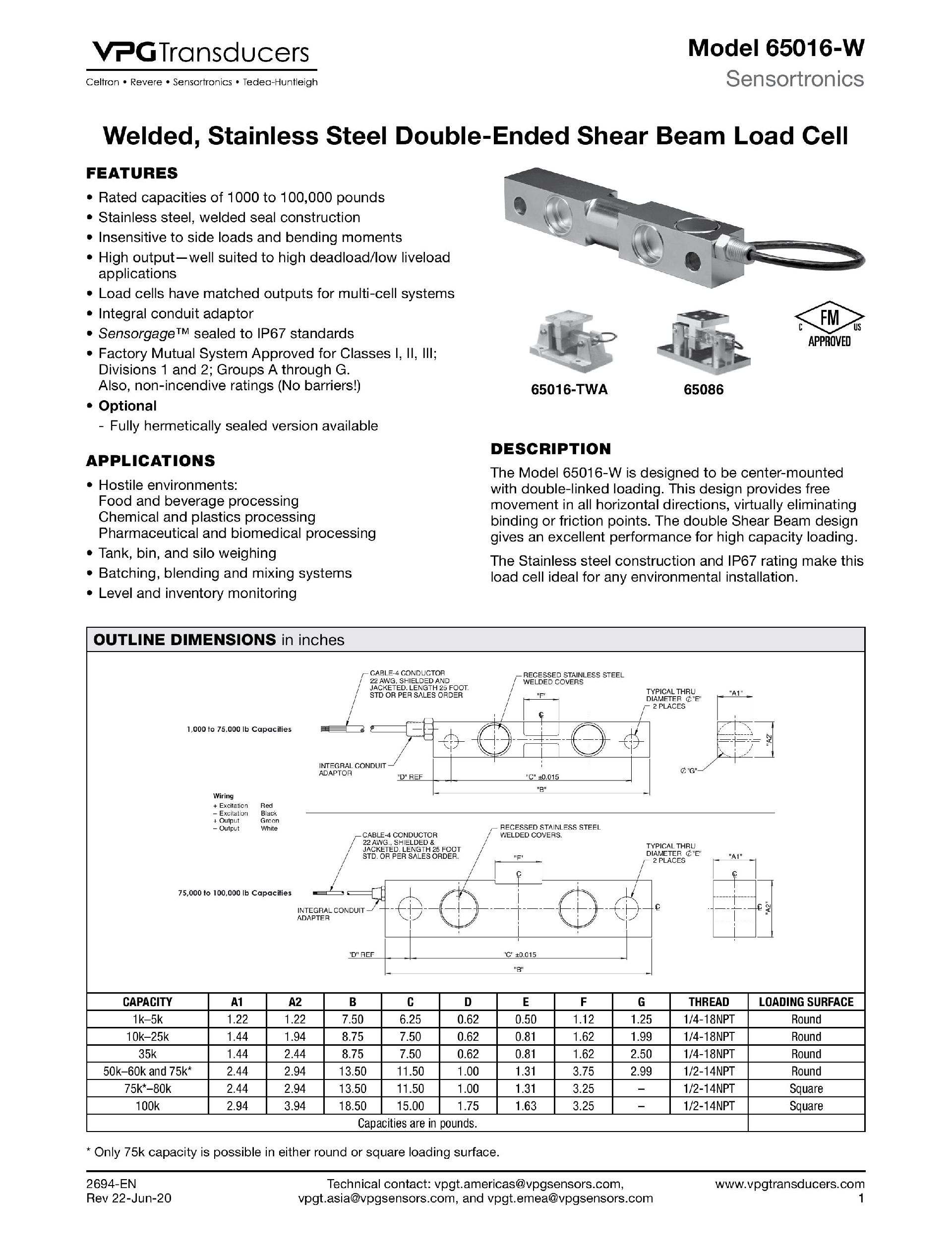

美国CELTRON世铨65016-W双剪切梁传感器

Features:

• Rated capacities of 1000 to 100,000 Ibs
• Stainless steel, welded seal construction
• Insensitive to side loads and bending moments
• High output—well suited to high deadload/low liveload applications
• Load cells have matched outputs for multi-cell systems
• Integral conduit adaptor
• Sensorgage™ sealed to IP67 standards
• Factory Mutual System Approved for Classes I, II, III;
• Divisions 1 and 2, Groups A through G.
• Also, non-incendive ratings (No barriers!)
• Optional
• Fully hermetically sealed available

Applications

• Hostile environments:
• Food and beverage processing
• Chemical and plastics processing
• Pharmaceutical and biomedical processing
• Tank, bin, and silo weighing
• Batching, blending and mixing systems
• Level and inventory monitoring
